Fan Type Snowmaking Machine
“SNOW ZEUS”

TOP OF TOPS
The Best Snowmaking Machine “SNOW ZEUS”

SNOW ZEUS Fan Snowmaker

SNOWZEUS is a Snow making machine used to produce a mass of snow in Ski Resort and Sledge Park in the field.

SNOWZEUS produces snow at the temperature below zero and can produce a rich amount of snow and has the good snow quality. Reflecting the climate conditions of nowadays, we designed “Manifold” that can be operated in 5 steps corresponding with the temperature of climate, and maximized the snowmaking capacity by Multi-Nozzle System.

Application Fields

Ski resorts, Snow parks, Tobogganing parks, Snow Festivals, Snow Events, Snow Projects

SNOW ZEUS Technology

1. New Nucleator Nozzle System

•“NUCLEATOR TECHNOLOGY” that can make snow in high temperature (-1℃) The “New Nucleator System” has been dev eloped by many years of research and test. It has much bigger snow making capacity in high temperature.

2. “Auto System” equipped

•Considering that the machine is used in cold weather, an automatic drain system has been applied to the snowmaking machine to automatically discharge all water inside the machine even if the power is cut off during operation. This freeze prevention function ensures that no water remains inside the snowmaking machine in situations such as power outages and emergency stops, allowing for quick resumption of snow removal operations upon restart

3. Core technology for increasing snow making

•Increasing snow making capacity by applying subdivided Nozzle Control in accordance with temperature.

4. Simple System

•With long time study, we reduced the factors of malfunction by decreasing parts of “Regulator”, and making the pipe compositi on more simple.

SNOW ZEUS Features

Making high quality snow near to natural one (Best snow quality)
Big throw and high snow output (big snow volume)
Easy to operate and maintain the machine system
Simple system drive
Small percentage of breakdown
Energy efficiency maximization
Training and maintenance by specialized technical engineers
Customer assistance built on many years of experience in system installation and design

Manifold & Nozzle System

SnowTech has developed and applied its own snow nucleation nozzle and water nozzle optimized for snowmaking, enabling snow production even at high temperatures with excellent snow quality.

Snow Production

■ Water Temperature : 3℃ / ■ Relative Humidity : 60% / ■ Water Pressure : 20㎏/㎤ / ■ Snow Density: 0.35

Outside air Temperature	℃	-2	-3.5	-5	-6.5	-8	-10
Emission Quantity(Water)	l/hr	3,542	9,090	14,396	20,444	26,204	31,061
Snowmaking Volume	㎥/h	10	26	41	58.4	75	94

※ The volum of snow can be increased by adjusting the nozzle’s position.
※ The table above lists the snowmaking standards in regions with high temperatures.

SNOW ZEUS Video

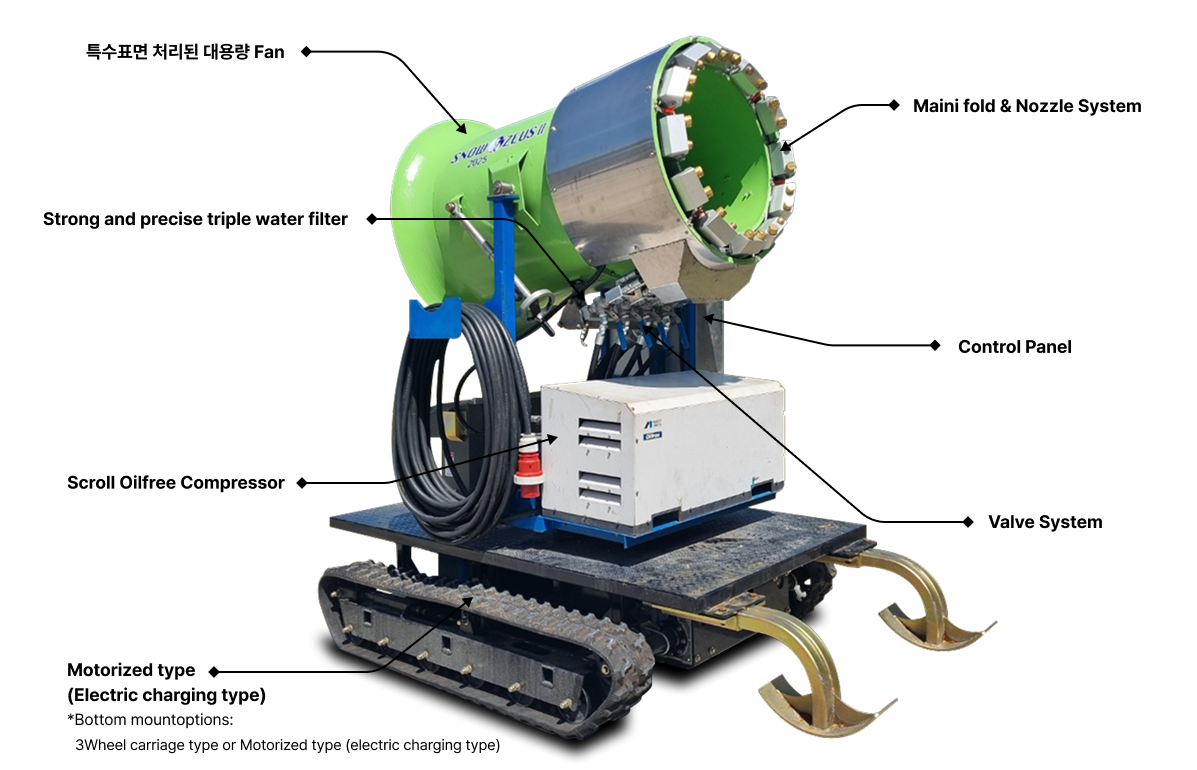

SNOW ZEUS Structure

SNOW ZEUS Technical Specifications

구 분	사 양		비 고
모 델	-	스노우 팝	1) 하부타입 : 포터블 또는 자주식 운반차 2) 버블기능 추가
형 식	-	팬 타입
크 기	길 이	1,400mm	포터블 타입 기준
	넓 이	900mm	“
	높 이	1,640mm	“
무 게	-	150kg	“
소비전력	가정용 전기	220V, 단상 / 5.5kW
노즐시스템	물 노즐	30EA
노즐시스템	눈핵 노즐	3EA
급수압력	-	가정용 수도
제설시작온도	-	-1℃ 이하
최대 눈 생산량	-	5.82㎥	수압 12㎏/㎠ ~ 17㎏/㎠ (pump) 온도 -7℃ 이하 / 습도 60% 이하 일때
비거리	-	15 m~20m
회전각도	-	180º

Model / Type	SNOW ZEUS / FAN TYPE
Dimension	-	3wheel carriage type	Motorized (electric charging ttype)	※Mount options
	Length	2.95m	-
	Width	2.25m	-
	Height	2m	-
Weight	-	750㎏	-
Power Consumption	Fan	15㎾
	Compressor	3.7㎾		Scroll Oilfree Type
	Heating	5㎾
Nozzle System	Water nozzle	30EA
Nozzle System	Nucleator nozzle	8EA
Valves	Manual Controls	5		Adjust quantity
Water Pressure	-	11Bar~30Bar		Recommend : 20~25㎏/㎠
Operating Angle	Swing angle	360˚		-
Operating Angle	Tilting angle	0˚~70˚		-
Discharge Distance	-	15m~60m
Snowmaking Temperature	-	-1℃ below		-
